In productionGARUDA
Pallet shuttle
Deep-lane pallet shuttle for high-density ASRS racking. Three builds from 1 T to bespoke cold storage. The workhorse of the range.
- 1500 kg payload
- 2 pallet/min
- Deep-lane ASRS

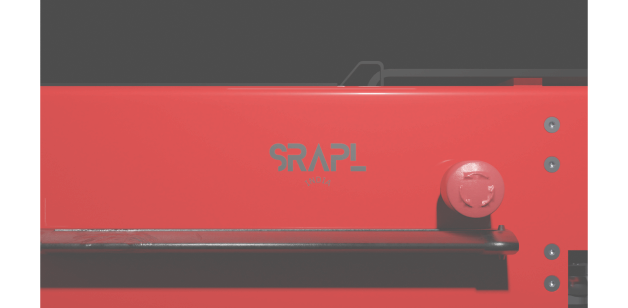

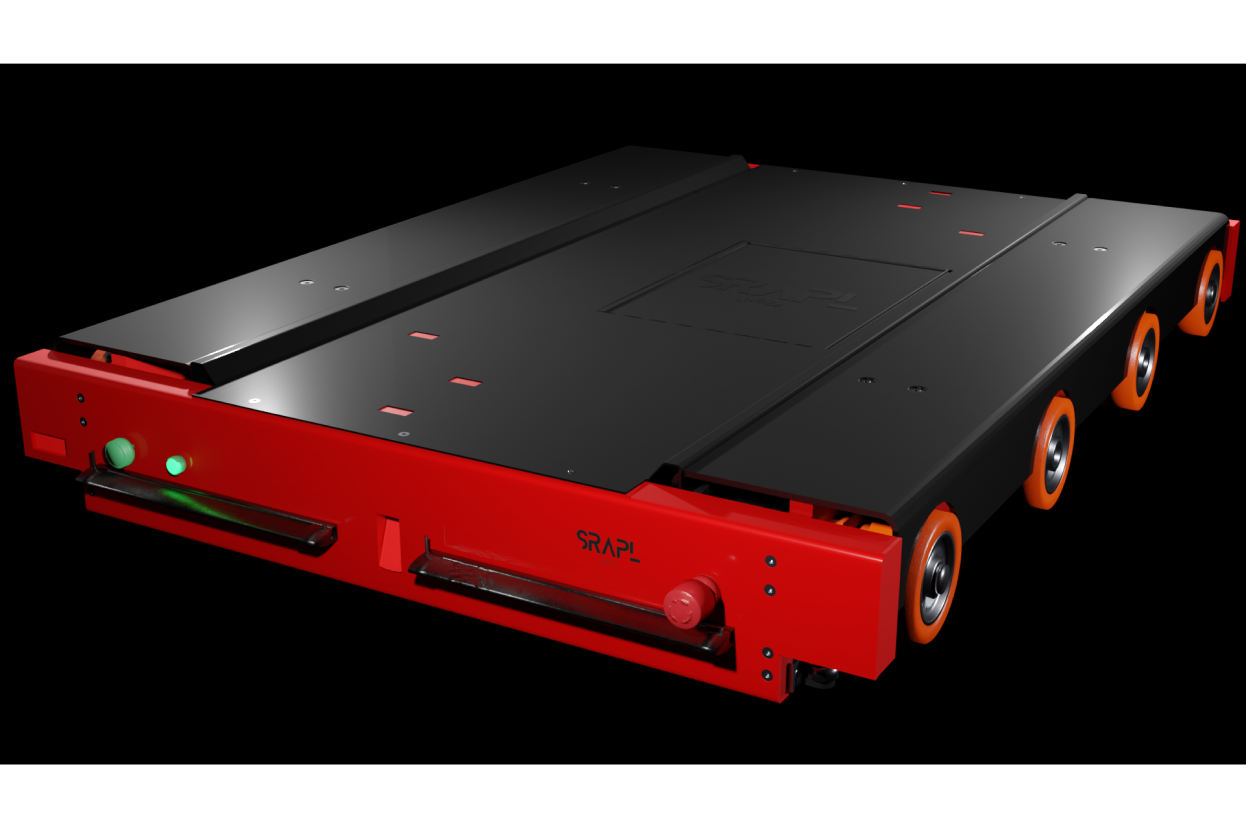

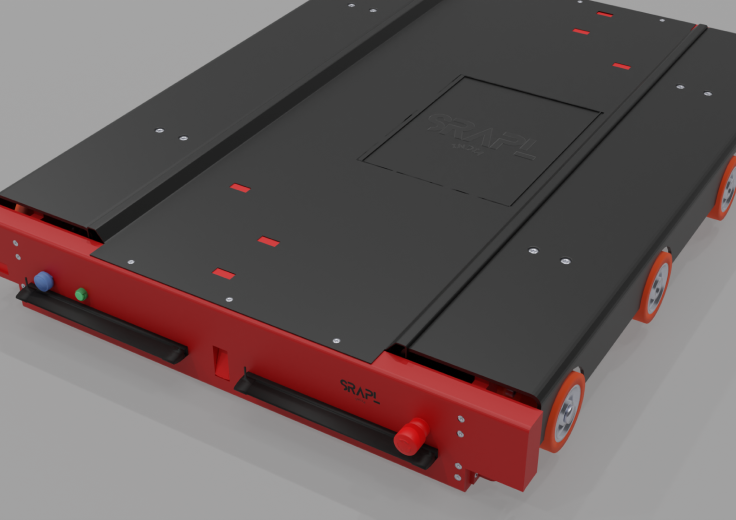

GARUDA — semi-automatic pallet shuttle
Deep-lane density,without the aisles.
GARUDA drives the pallet, not the forklift. One shuttle serves an entire lane of racking — reclaiming the floor that aisles used to eat, and moving two pallets a minute while it does it.
- 1500kg
- Payload
- 2pallet/min
- Throughput
- 1.2m/s
- Top speed
The system
Storage that earns its floor
A pallet shuttle changes the economics of a warehouse in three places: the footprint you pay rent on, the pallets you can move an hour, and the conditions the equipment will tolerate.
Reclaim the aisle
Conventional selective racking spends up to 70% of its footprint on aisles. GARUDA works inside the lane, so pallets go where forklifts used to drive.
Deep-lanestorage geometryTwo pallets a minute
Autonomous in-lane cycling at 1.2 m/s unladen and 0.8 m/s under full load, running FIFO or LIFO against the same rack without reconfiguration.
2/minsustained throughputCold store to ambient
Rated −5 °C to 55 °C on a 24 V / 54 Ah pack. The same unit handles chilled FMCG lanes and un-airconditioned Indian warehouse roofs.
−5…55°C operating band
Three builds
One platform, sized to your load
The same drive system and control stack across all three. What changes is the chassis rating, the duty cycle and the environment it's sealed for.
The volume build
Generic1 T
The standard ambient-warehouse shuttle. Sized for palletised FMCG, 3PL and e-commerce lanes where throughput matters more than unit weight.
- Standard 24 V / 54 Ah pack
- FIFO and LIFO on the same rack
- All three EU pallet formats
- Payload
- 1000 kg
- Temperature
- −5 to 55 °C
- Duty cycle
- Single to two-shift
Typical applications
- FMCG
- 3PL
- E-Commerce
- Fashion
Drive system, controls and the 1320 × 950 × 170 mm envelope are common across all three builds, so lane geometry carries over if you change rating later.
Datasheet
GARUDA, to the millimetre
Everything a racking designer needs to size a lane. Full drawings and load charts come with the lane study.
Payload
1500kg
Efficiency
2pallet/min
Top speed — no load
1.2m/s
Top speed — with load
0.8m/s
Unit dimension
1320 × 950 × 170mm
Self-load weight
280kg
Operating temperature
−5 to 55°C
Power
24 V / 54 Ahbattery
Pallet formats — EU standard
- 800 × 1200 mm
- 1000 × 1200 mm
- 1200 × 1200 mm
Lane depth, upright spacing and beam levels are sized per site. Send us a rack layout to upgrade your warehouse.

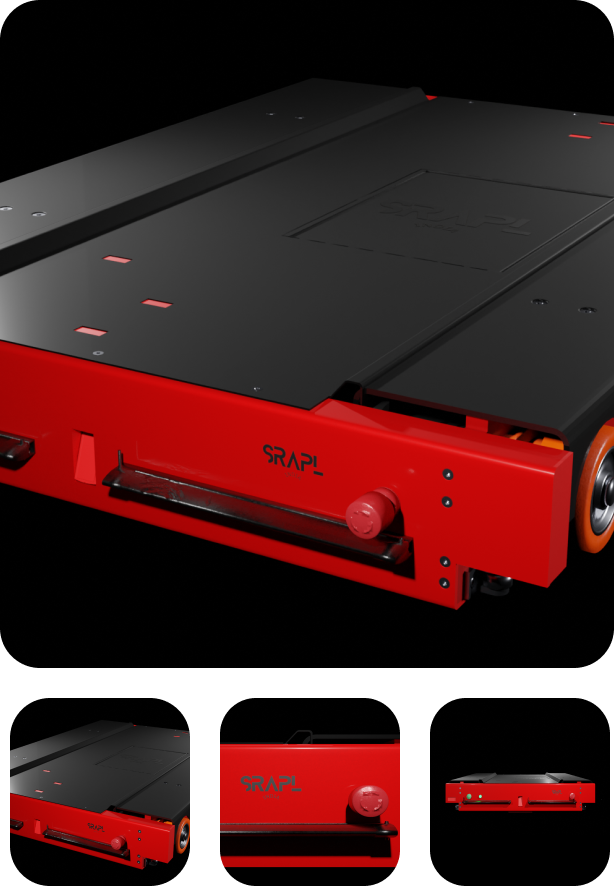

3D & augmented reality
Stand it on your own floor
Spin the shuttle, or drop it into your warehouse at true scale through your phone camera. It occupies exactly the 1320 × 950 mm the real unit does — so you can check a lane before anyone quotes one.
Loading 3D viewer…
Drag to orbit. The View in your space button appears on AR-capable devices over a secure (https) connection — on iOS, open in Safari.
Spin it here
Drag to orbit, scroll to zoom. Works on any browser, no app.
Open on a phone
Tap “View in your space” to launch the camera. Needs an https connection.
Place it to scale
Point at the floor and place. It lands at true 1320 × 950 mm.
Product line
Everything that moves, sees and counts
Shuttles and AGVs move the pallet. Vision and tracking make sure the system knows where it went.
- In production

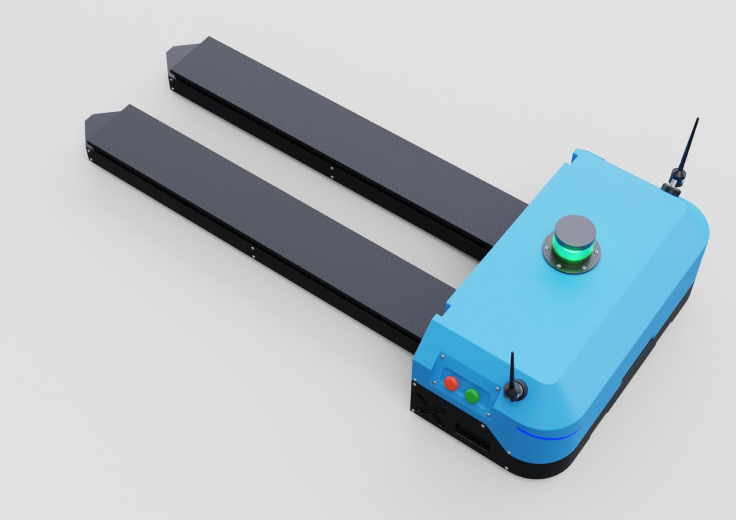

In productionZEUS
AGV / AMR platform
Laser-guided autonomous fork platform moving pallets horizontally between docks, lanes and production cells.
- Laser guided
- Dock to lane
- Fleet ready
In productionLOG AI
Machine vision
Imaging-based inspection, analysis and guidance — dimensioning, barcode capture and pick verification across the floor.
- Dimensioning
- Barcode capture
- Pick verification
In productionEdge Vision Camera
On-device inference
Rack-face camera running inference locally, so damage detection, load verification and lane occupancy resolve in milliseconds without a round trip to a server.
- On-device inference
- Damage detection
- Lane occupancy
In productionAutopart Inspection
Vision inspection
Measures length, internal and external diameters, thread pitch and count, and head height — while flagging head cracks, slanted threads, broken pins and part-present errors at line speed.
- Dimensional + visual
- Nuts, rods, fasteners, O-rings
- Line speed
In productionPallet Trackers
Asset telemetry
Battery-backed tags that keep every pallet's position, dwell time and movement history live — so stock counts come from the floor rather than from a spreadsheet.
- Live position
- Dwell time
- Movement history
ROI calculator
Work out what your aisles cost
Deep-lane storage buys back the floor that aisles consume. Set your numbers and see the footprint difference — then let us verify it with a real lane study.
CurrencyRent and savings
Total pallets the site has to hold.
How high the racking goes, ground level included.
Pallets deep per shuttle lane. Deeper lanes amortise the service aisle further.
INR per sq ft per month, including common-area charges. Markets quoting annually — divide by 12.
Floor reclaimed
21,976sq ft
55% smaller footprint
Rent saved each year
₹92.30 L
At ₹35/sq ft/month on the floor you no longer rent.
Ground floor area required
Selective racking39,692sq ft
GARUDA deep lane17,716sq ft
Indicative only. Assumes a 3.5 m aisle shared by two facing rows, a 1 × 1.2 m pallet, and enough pallets per SKU to fill lanes.
Get a lane studyWhat we do
Specified, installed and supported
We are not a reseller. The team that models your lanes is the team that builds the shuttle and answers the phone three years later.
Comprehensive warehouse automation
High-density racking, AGVs, vision solutions, conveyors and robotics — specified and integrated as one system rather than bolted together after the fact.
Tailored solutions
Concept to implementation. We model your SKU profile, lane depths and throughput targets before a single upright is ordered.
Technical support
Installation, operator training, troubleshooting and after-sales support from the engineering team that built the unit — India and UK.
Deployed across
- 3PL
- Fashion
- FMCG
- Electronics
- Manufacturing
- Pharma
- E-Commerce
Now open
Taking projects across United States, United Kingdom and UAE.
- 2+
- Patents
- 5+
- Products shipped
- 30+
- Years of experience
Talk to engineering
Send us an enquiry
Shuttles, AGVs, vision, tracking — or something you haven't found on this page. Tell us what you're trying to solve and an engineer will come back to you, not a sales sequence.
Email
hello@sraplindia.comPhone
+91 8122999783Engineering & manufacturing
India
Sales & project support
United Kingdom
Typical reply
Within one working day
What you'll get back
- — An engineer's read on whether it's the right fit
- — Sizing, throughput or integration notes for your site
- — A clear next step, or an honest no
